| Model No.: |
SG-3A3 |
| Main Specification |
|
| Mainframe Dimension |
Monitor: 353(W)*24.5(D)276(H)）mm; Base:250X252mm;Highest: 420mm(Adjustable) |
| Power Supply |
External Power Supply, Input:110V-240V 50/63Hz 2A, Output:12V DC 6A 96W MAX |
| Mainframe Configuration |
|
| Main Board |
POS Motherboard |
| CPU |
Intel 1800,2.41GHz Duad-core /J1900,2.0GHz Quad-core Processor/i5 |
| Memory |
DDRI 2G/ 4G/8G |
| Hard Disk |
32G/64G/128G SSD |
| OS Support |
Windows 7/Windows 8/Windows 10/ POS Ready 7 |
| Interface |
|
| USB |
6 USB ports |
| LAN |
1 LAN port |
| VGA |
1 VGA port |
| COM |
1 Serial port |
| Audio |
1 Audio input (MIC);1 Audio output |
| Display |
|
| Display Size |
15″ 4:3 Industrial grade panel |
| Touch Screen |
15″ Capacitive touch panel,15″TFT LED Screen |
| Panel Backight Type |
LED with 50K hours of life |
| Brightness |
350 cd/m2 |
| Resolution |
1024*768 |
| Option |
|
| Customer Display |
15″TFT LED Resolution:1024*768 |
| GS-LED8N 8digits (Optional: VFD Customer Display with 2 Lines, 40 digits ) |
| Printer |

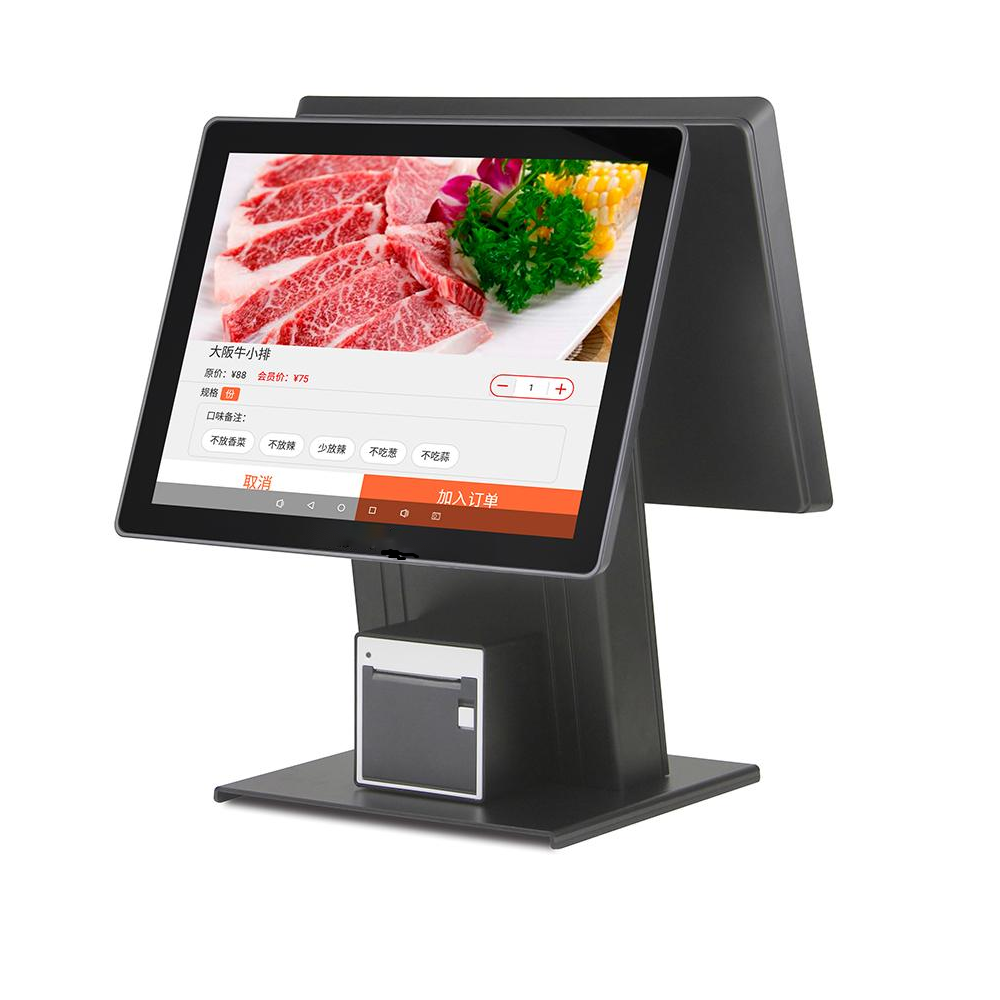

Embedded 80mm/58mm Thermal Receipt Printer with auto cutter (Optional) |
| MSR |
Mini Magnetic Card Reader, Track 1+2+3(Optional) |
