| Model No.: |
SX-101A1 |
| Physical Parameter |
|
| Type |

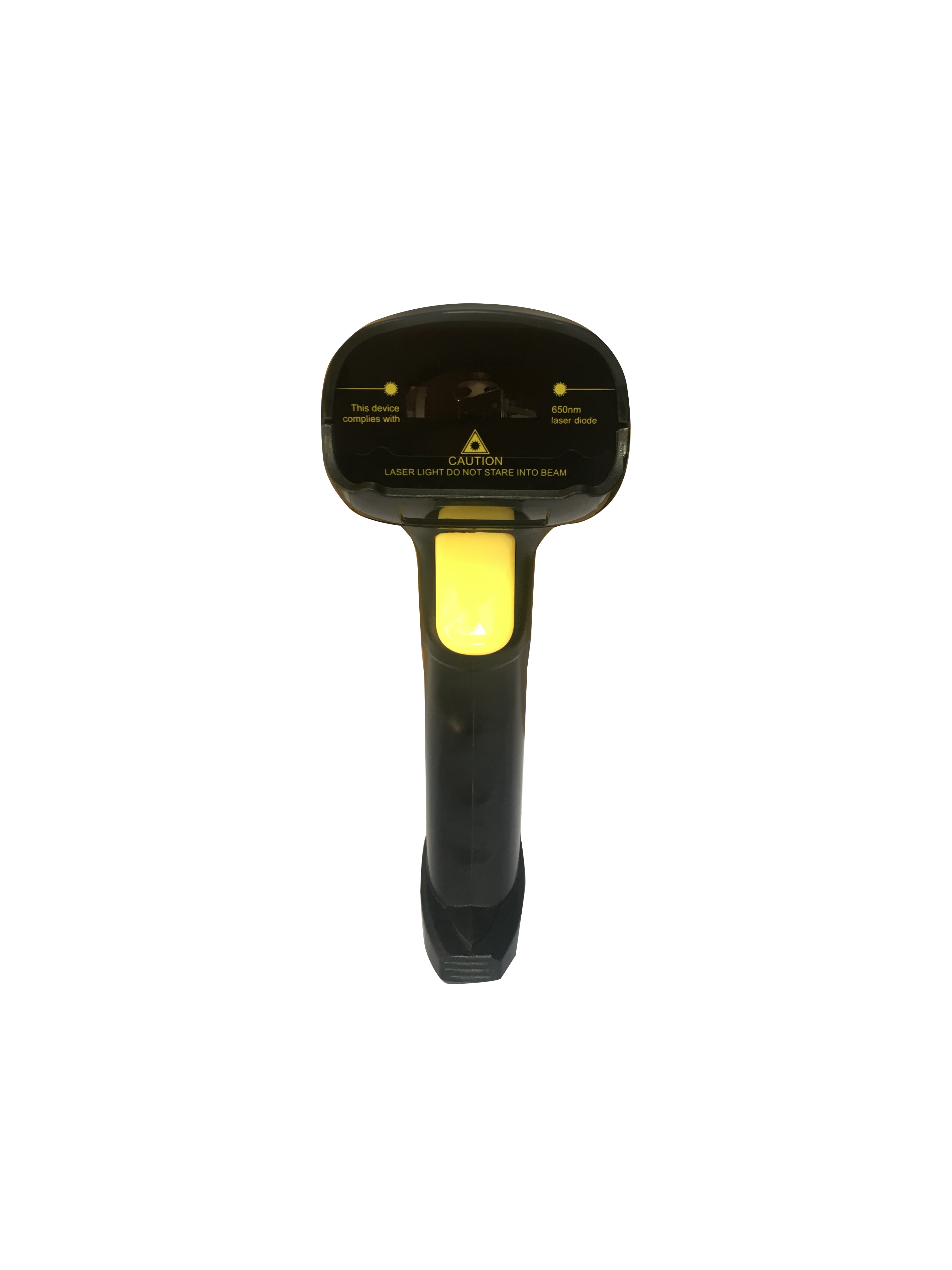

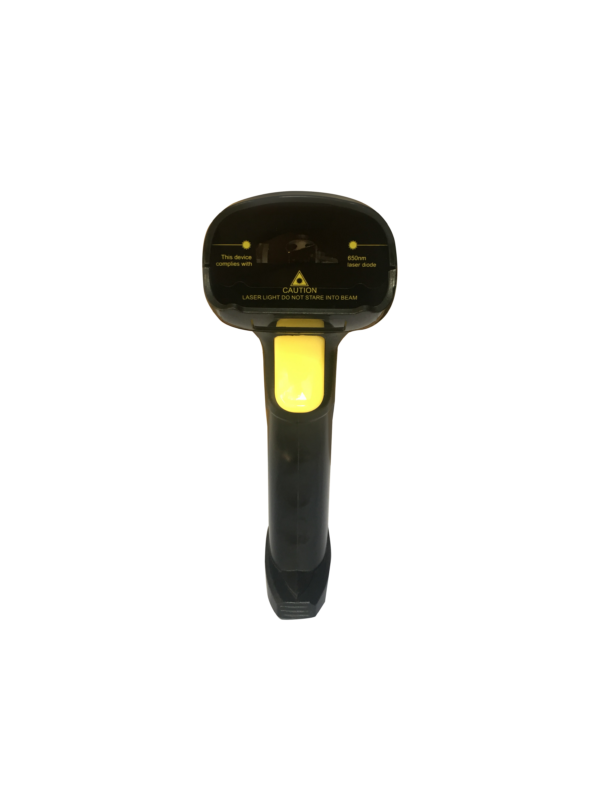

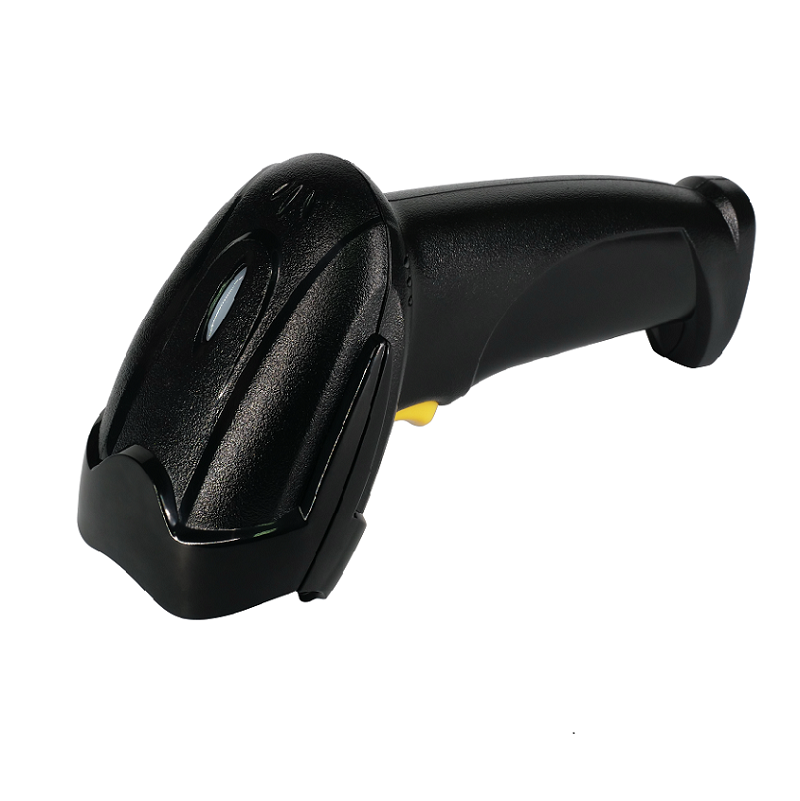

Handheld Wired Barcode Scanner |
| Material |
ABS+TPE+PC |
| Size |
Length*Width*Thickness：167*97*65mm |
| Color |
White / Black |
| Power Supply |
DC 5V ±5% |
| Weight |
115g(Without the cable) |
| Performance Parameter |
|
| Interface |
USB,RS232 |
| Sensor |
Linear CCD sensor |
| Light Source |
632nm red diode(LED) |
| Professor |
32-bit ARM Cortex-M3 MCU |
| Decoding capability |
Codabar,Code 11,Code 93,MSI,Code128,UCC/EAN-128,Code 39,EAN-8,EAN-13,UPC-A,Industrial 25,Standard 25,2/5 Matrix |
| Resolution |
4mil(0.1mm)PCS45% |
| Depth Of Field |
500mm@20mil/0.5mm,PCS90% |
| Scanning Speed |
100scans/sec |
| Scanning Mode |
Manual, Continuous scanning |
| Scanning Width |
5cm-30cm |
| Prompt Mode |
Buzzer, Indicator light(LED) |
| Print Contrast |
30% |
| Scanning Angel |
Roll35°,Pitch65°,Yaw65° |
| Environment Parameter |
|
| Operating Temp. |
0 to 50 ºC / 32 to 122 ºF |
| Storage Temp. |
-20 to 70 ºC / -4 to 158 ºF |
| Operating Humidity |
20 – 95% (No condensing) |
| Storage Humidity |
20 – 95% (No condensing) |
| IP Grade |
≥IP54 |
| ESD protection |
15kv |
| Shock Resistance |
1.5m free fall on concrete surface |
