Description

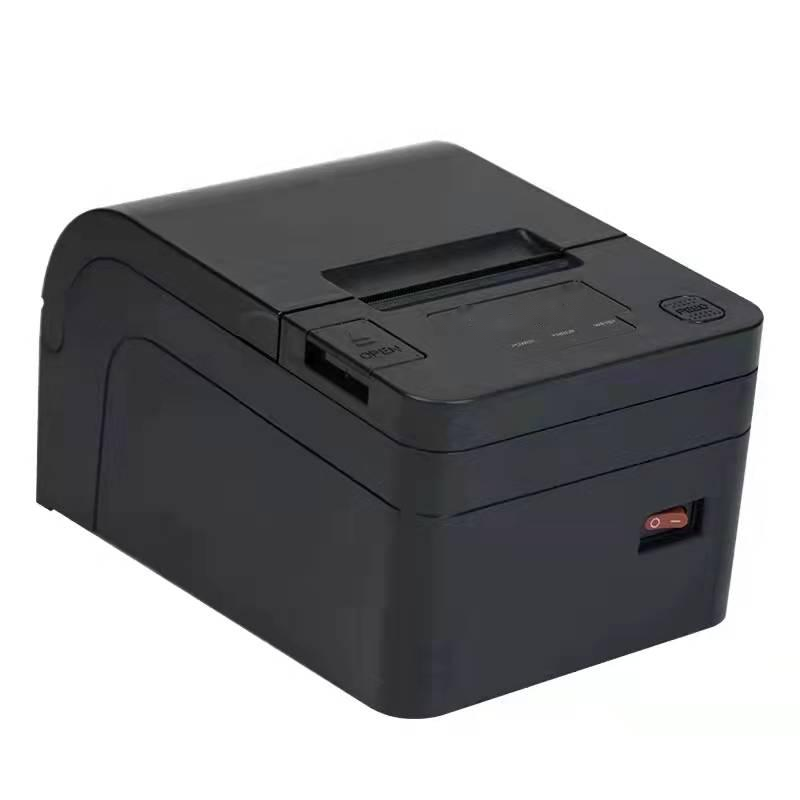

| Model No.: | SD-POS58 | |
| Printing Method | Direct Thermal Printing | |
| Resolution | 8 dots/mm, 384 dots/line | |
| Printing Speed | 60mm/s | |
| Effective Printing Width | 48mm | |
| Character Set | ASCII, GB18030(Chinese),BIG5 | |
| Character | Print Font | Codepage, ANK: 12 x24 Chinese: 24×24 |
| User-defined | Support | |
| Paper Spec | Paper Type | Thermal paper |
| Paper Width | 57.5± 0.5mm | |
| Paper Thickness | 0.06~0.08mm | |
| Paper Roll Diameter | Ф60mm（Outer）/Ф13mm（Inner） | |

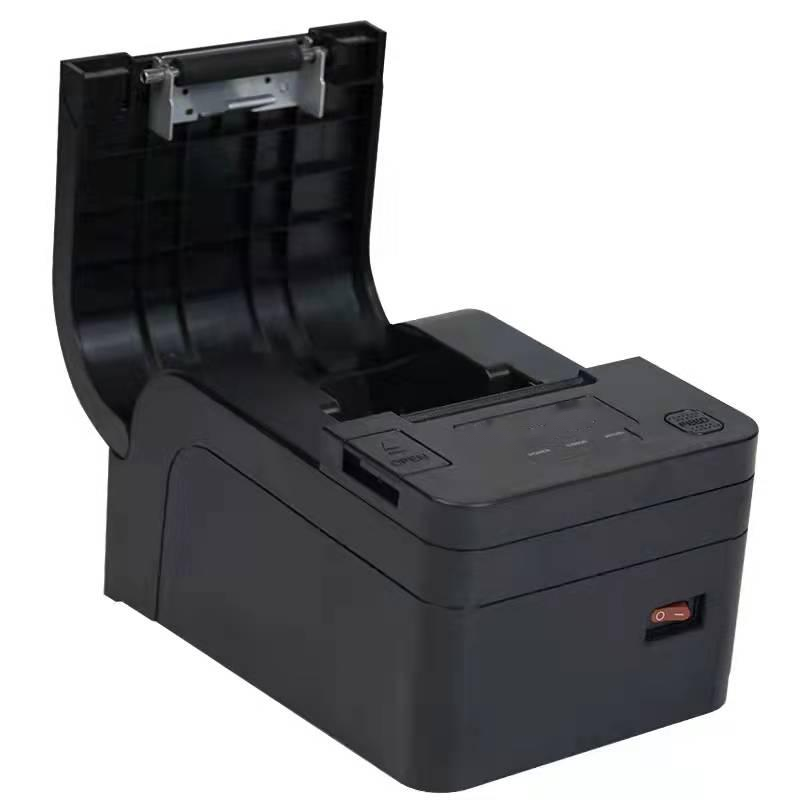

| Paper Loading | Drop-in easy paper loading | |
| Auto-Cutter | N/A | |
| Barcode | EAN-13、EAN-8 | |
| Reliability | TPH | 50KM |
| Drop-resistant | 1.2m (with box) | |
| Paper Lack Alarm | Support | |
| Testing Function | Black Mark | Support |
| Over Heat Protection | Support | |
| Interface | Serial (DB-9); Parallel (DB-25); USB | |
| Cash Drawer Port | DC12V/24V，1A，RJ-11 socket | |
| Power Supply (Adapter) | DC12V±10％,2A | |
| Emulation | ESC/POS | |
| Physical | Operating Temp/Humidity | 0～50℃/10～80％ |
| Storage Temp/Humidity | -20～60℃/10～90％ | |
