Description

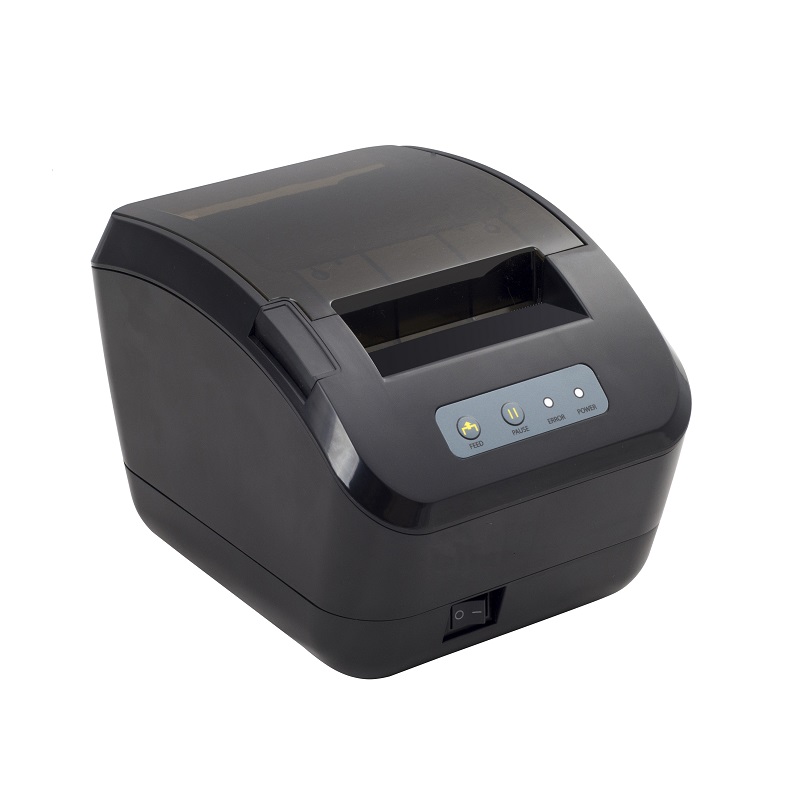

The model of this direct thermal label printer is SZ-L609. It can support label paper mode and receipt paper mode. And the way to transfer between two modes is very easy by buttons. OEM&ODM services are supported. And all products can be supplied one year warranty.
| Printing Method | Direct Thermal | |
| Resolution | 203dpi(8 dots/mm) | |
| Printing Speed | Min:50.8mm/s Max:152mm/s | |
| Effective Printing Width | 72mm | |
| Print Font | Font A 12×24,Font B 9×17 ChineseGB18030,BIG5 24x24dots | |
| Paper Spec | Paper Type | Thermal Receipt Paper/Thermal label paper |
| Paper Width | 80mm (optional adjustable 48mm/52mm/56mm/64mm/68mm/76mm/80mm) | |
| Paper Thickness | 0.06~0.19mm | |
| Paper Roll Diameter | 20mm-82mm 83mm (MAX) | |
| Paper Loading | Easy paper loading | |
| Auto-Cutter | Manual Tear Off | |
| Barcode | 1D: CODE128 / 128M / EAN128 / CODE39 / 39C / 39S / CODE93 / EAN13 / EAN13+2 / EAN13+5 AN8 / EAN8+2 / EAN8+5 / 25 / 25C / CODABAR / POSTNET / UPC-A / UPCA+2 / UPCA+5 /UPC-E / UPCE+2 / UPC-E+5 / CPOST / MSI / MSIC / PLESSEY / ITF14 / EAN14 2D: PDF417/QR CODE/DATA MATRIX |
|
| Reliability | TPH | 150KM |
| Cutter | N/A | |
| Sensors | Thermal Sensitive Resistance Photoeletric sensor | |

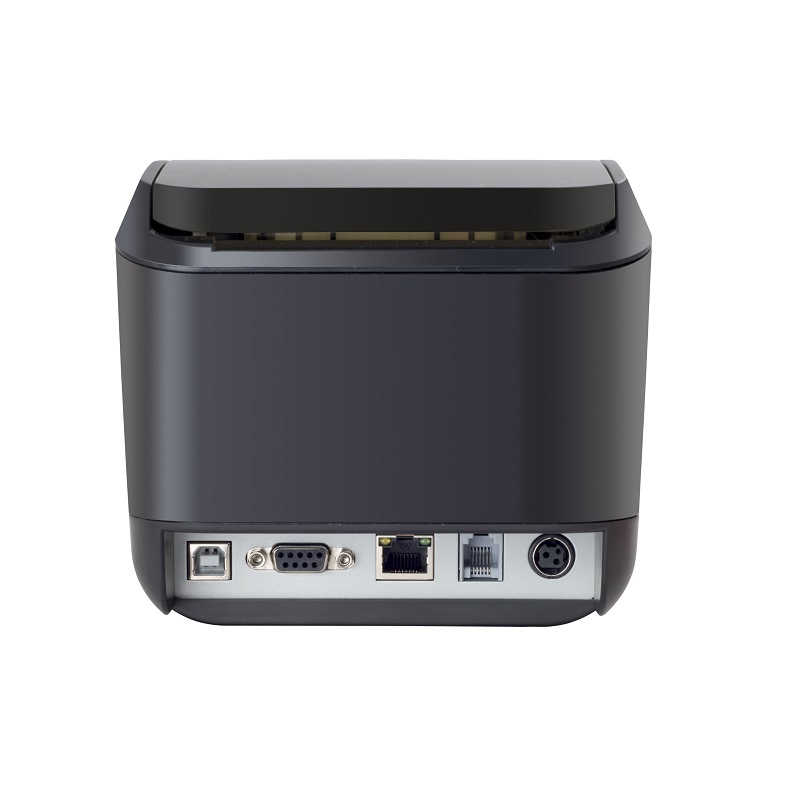

| Interface | USB/USB+LAN/USB+LAN+SERIAL/USB+BT/USB+WIFI | |
| Power Supply (Adapter) | AC 100V-240V 50/60HZ DC 24V/2.5A | |
| Commands Set | TSPL(Lable mode)/ ESC/POS(Receipt mode) | |
| Driver | Windows XP /Win7/Win8 /Win10/MAC/Linux | |
| SDK | Android, IOS | |
| Physical | Dimensions | 193.5(L)X145(W)X135(H)cm |
| Net Weight/Gross Weight | 1.0kg/1.47 kg | |
| Operating Temp/Humidity | Temperature 5°C~45°C, Humidity 20%~80%RH | |
| Storage Temp/Humidity | Temperature-10°C-60°C,Humidity10%~90%RH | |
| Package | Inner Box | 28.6X16.4x16cm(LxWxH) |
| Outer Carton | 61.5X37X53.5cm(LxWxH)12units/carton | |
Besides direct thermal label printer, there are also different kinds and models of receipt printers in our range. 58mm or 80mm thermal POS receipt printer, thermal portable bluetooth printer. Series of POS system hardware products are also available, including touch POS terminal, barcode scanner, cash drawer, etc.
Our goal is to supplying the best service and good quality label printer, POS system hardware products to all customers! Welcome any inquiry from all friends around the world.
