| Model No.: |
|

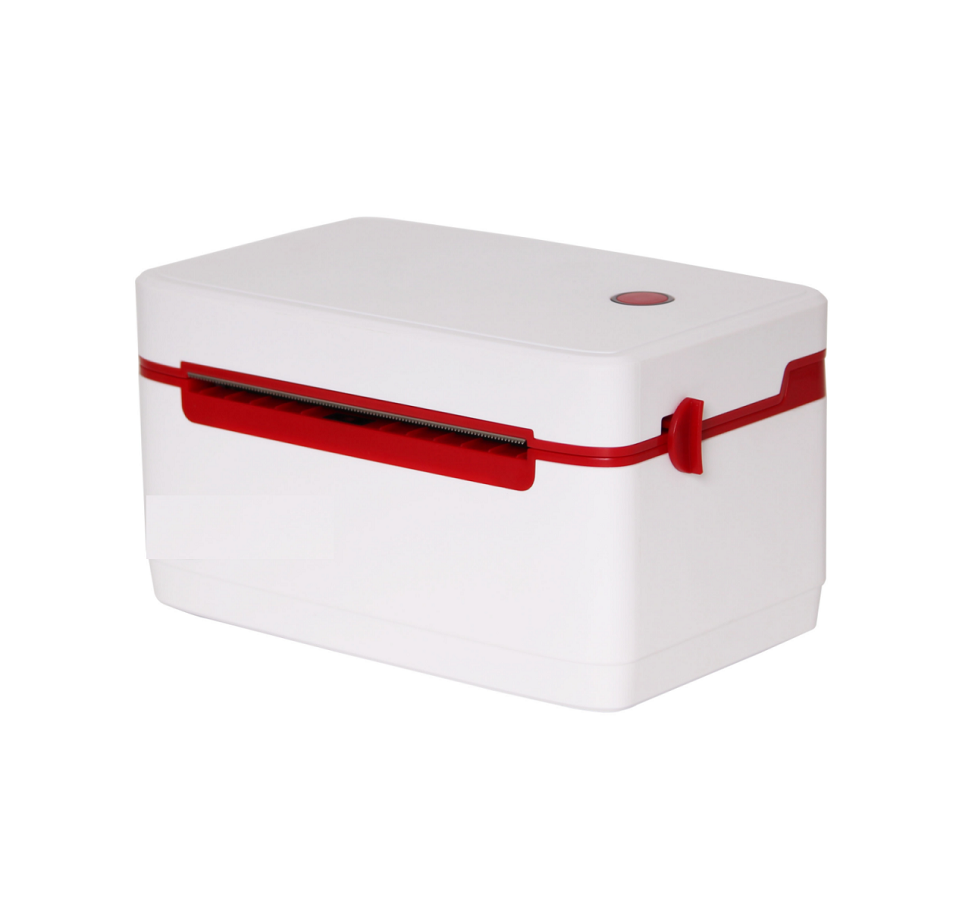

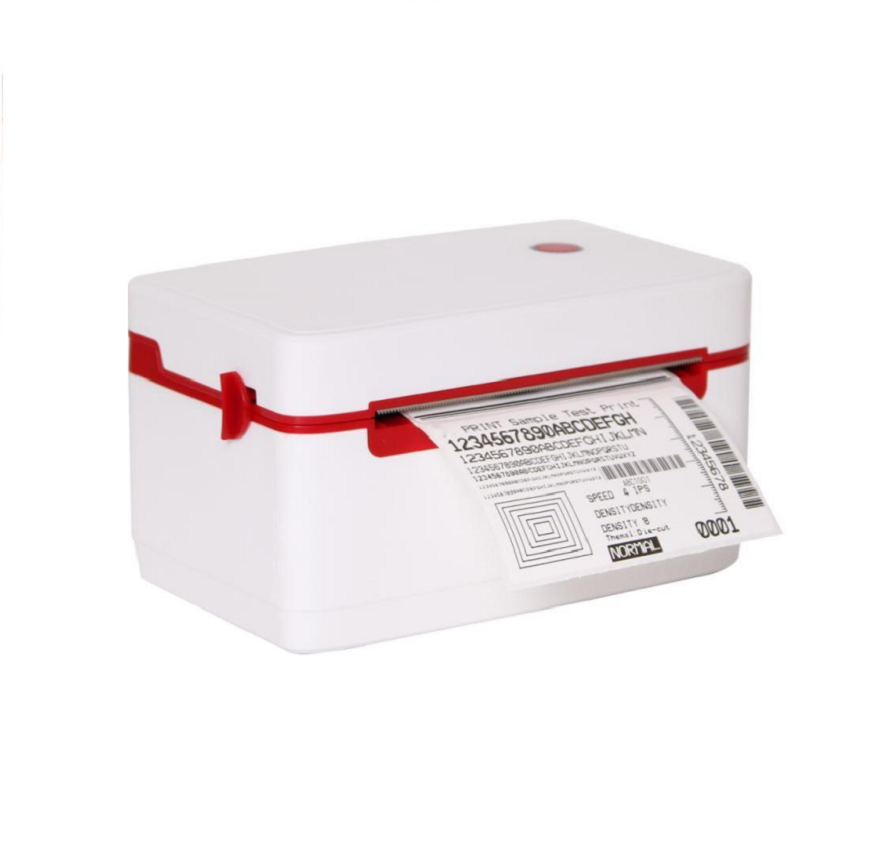

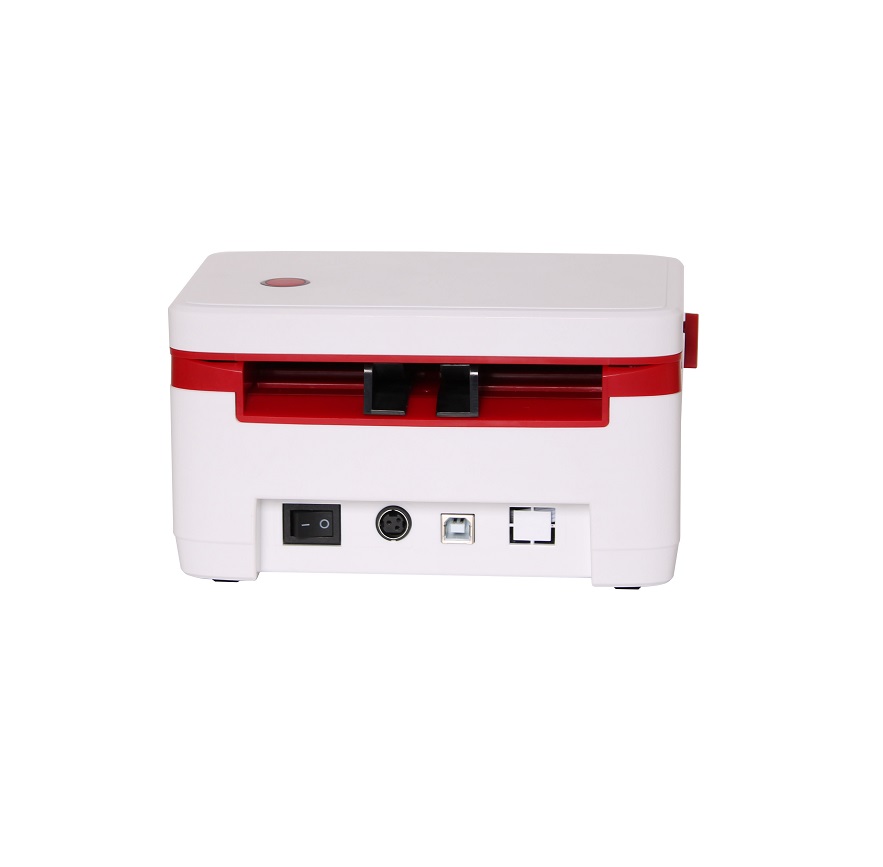

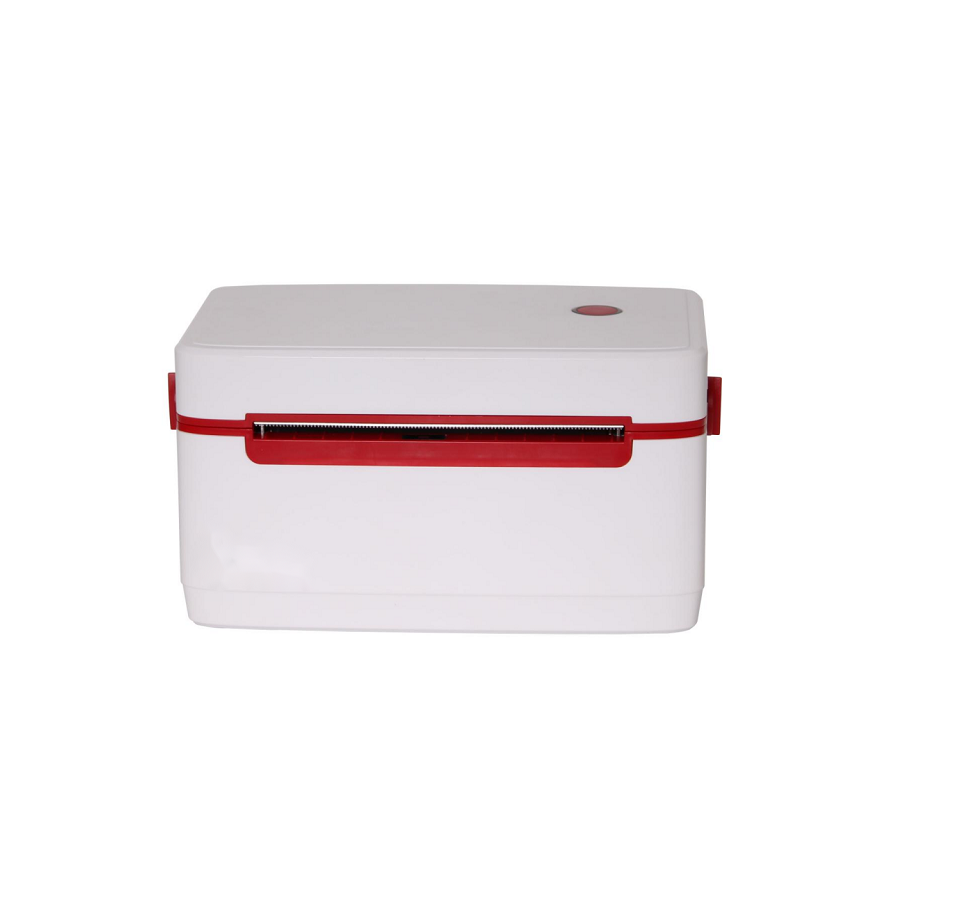

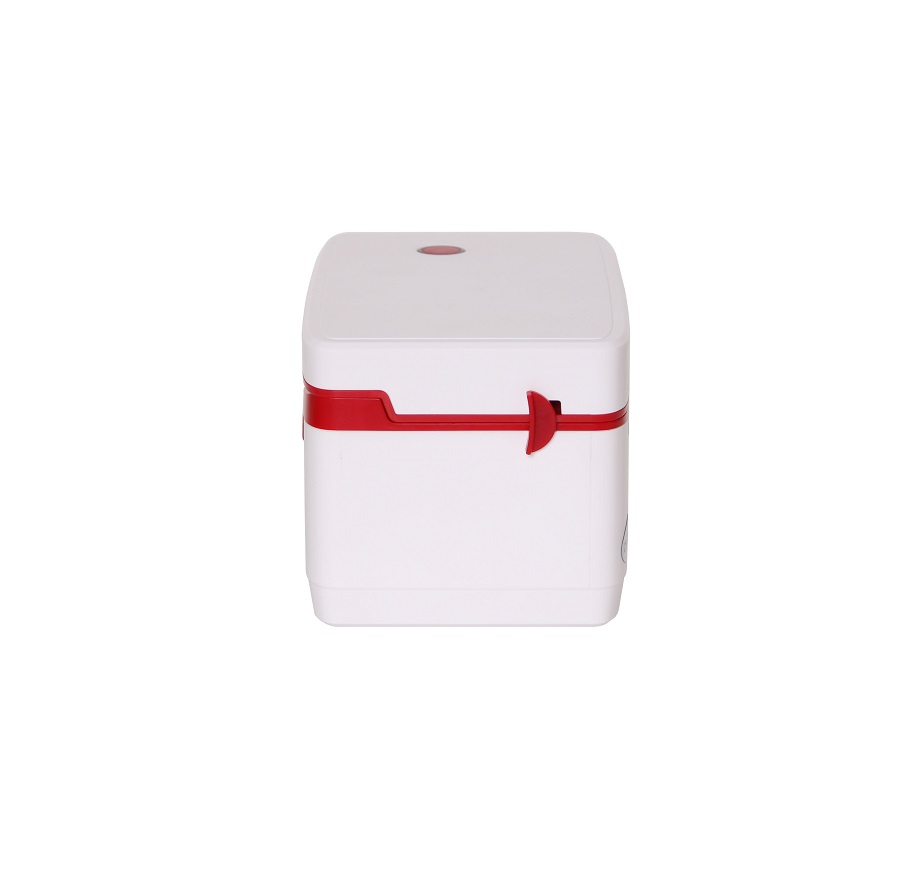

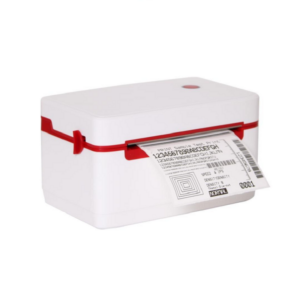

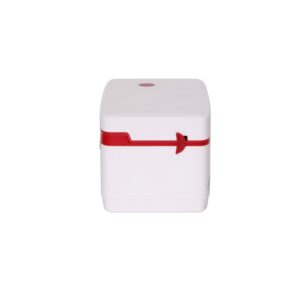

SZ-L909 Label printer |
| Print |
Printing Method |
Direct Thermal |
| Resolution |
203dpi(8 dots/mm) |
| Printing Speed |
Max:152mm/s |
| Max.print width |
108 mm |
| Max.print length |
1778 mm |
| Internal fonts |
8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software. |
| Paper Spec |
Paper Type |
Thermal Label |
| Paper Width |
32~118mm (1.0”-4.6”) |
| Paper Thickness |
0.06 ~ 0.25 mm (2.36 ~ 9.8 mil) |
| Paper Roll Diameter |
25.4 ~ 76.2 mm (1 “~ 3 “) |
| Label length |
10 ~ 1778 mm (0.39 ” ~ 70 “) |
| Label roll capacity |
127 mm (5″) (External diameter) |
| Barcode |
1D barcode |
Code 39, Code 93, Code 128UCC, Code 128, subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on,MSI, PLESSEY, POSTNET, China POST |
| 2D barcode |
PDF-417, Maxicode, DataMatrix, QR code |
| Sensors |
Continuous, gap, black mark, fan-fold and punched hole |
| Rotation |
0°、90°、180°、270° |
| Commands Set |
TSPL、EPL |
| TPH |
30km |
| Interface |
USB/USB+LAN/USB+BT/USB+Wifi |
| Power Supply (Adapter) |
AC 100-240V, 50-60Hz; DC 24V, 2.5A, 60W |
| Driver |
Windows XP /Win7/Win8 /Win10/MAC/Linux |
| SDK |
Android, IOS |
| Physical |
Dimensions |
222(D) x180(W) x162(H)mm |
| Weight |
1.15kg |
| Operating Temp/Humidity |
5 ~ 40°C(41~104°F) Humidity: 25 ~ 85% non-condensing |
| Storage Temp/Humidity |
-40 ~ 60°C(-40~140°F) Humidity:10 ~ 90% non-condensing |
