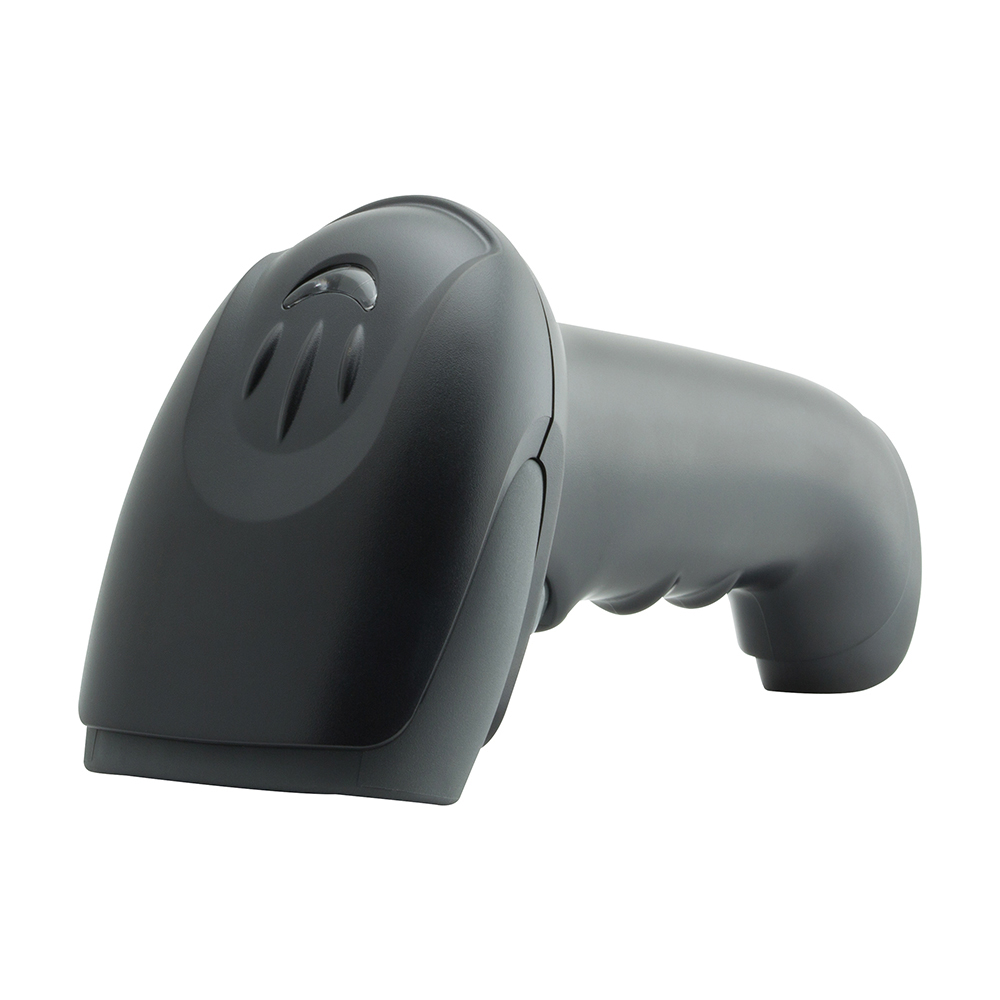

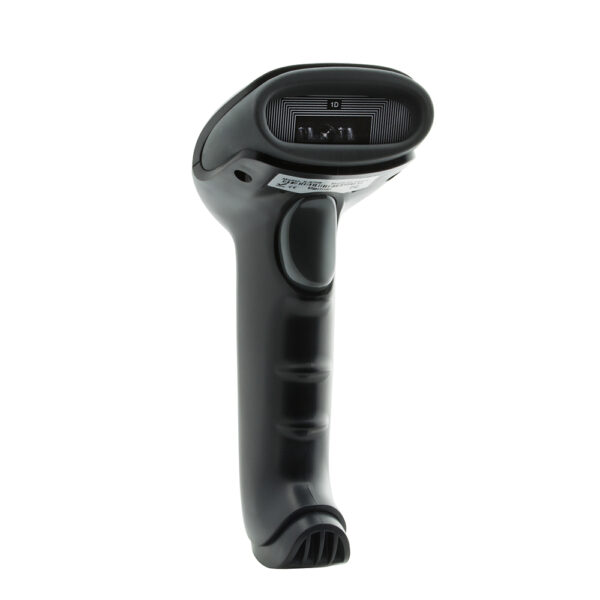

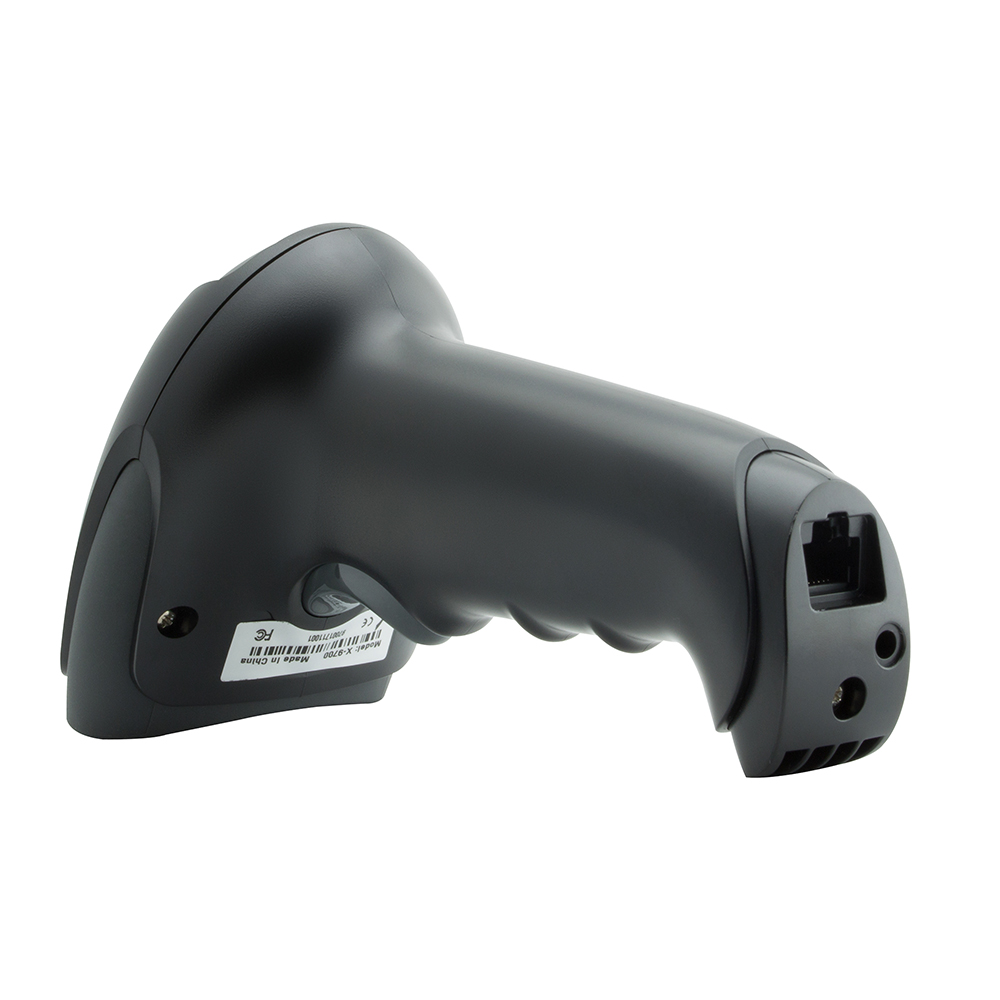

2D Wireless Barcode Scanner SX-102B6

•Wired, 2.4G wireless, Bluetooth, multi-mode free switching
•Multi-language (24 languages are supported by default and can be customized)
• Support offline storage of barcodes, a good helper for warehouse inventory
• Multi-system support (Windows, Android, Linux, MAC OS, IOS)
• Open distance: Bluetooth 10-20m, 2.4G wireless 100m
• Use more freely, one receiver can be connected to multiple scans

Send Inquiry
Description

Description



Model No.: SX-102B6
Physical Parameter
Material ABS+PVC+PC
Power Supply Charge 5V ±5% ;3.7V  2000mAH  lithium battery
 Operating Current 400mA(working);90mA(standby);500mA(maximum)
Weight 146g±5g(Without cable)
Size L*W*H:196 * 87 * 70(unit:mm)
Color Black;Grayish white
Button Lifespan >100000times
Performance Parameter
Interface USB cable;Wireless 2.4G transmission
System Supported Linux,Android,Windows XP、7、8、10,MAC
Language Supported English; German; French; Spanish; Italian; Japanese
Sensor Planar CMOS sensor
Light Source Red LED(Aiming)+White LED(lighting)
Processor 32-bit ARM MCU
Storage 2M
Motion tolerance Code128: 15cm/sec;     QR: 25cm/sec
Resolution 4mil
Transmission Distance 90m
Bit Error Rate 1/5000000
Reading Mode Image
Trigger Mode Manual ;Continuous scanning;Auto-sensing
Prompt Mode Buzzer, Indicator Light(LED)
Print Contrast 25%
Charging time 8 hours
Working time 42 Hours
Decoding Capability 1D:
Code25-Interleaved        Code25-Standard           Code25-Matri
Code39-Regular                       Code39-FullASCII           Code32
Code93-Regular                       Code93-FullASCII           Code128
EAN/GSL/UCC-128Auto         Codabar                           MSI
EAN/JAN-13                              UPC-A                              JAN-8
Code11                                      UPCE0
2D: MICRO QR              Data Matrix           QR  Code
AZTEC                    PDF417                 Maxicode
Scanning Distance 10mm-600mm
Scanning Angel Roll360°;Pitch65°;Yew65°
Scanning Depth EAN-13:  5cm-20cm   (13mil)
Code39: 4cm-9cm    (5mil )
QR Code:  2.5cm-24cm    (20mil )
Data Marix:  5cm-9cm   (10mil )
PDF 417:  3cm-13cm      (6.67mil )
Environment Parameter
IP Grade IP42
Operating Temp. 0 to 50℃ / 32 to 122℉
Storage Temp. 0 to 50℃ / 32 to 122℉
Operating Humidity 20% to 85%(No Condensation)
Storage Humidity 20% to 85%(No Condensation)
ESD Protection 15KV air discharge
Shock Resistance 1.2m free fall on concrete surface
